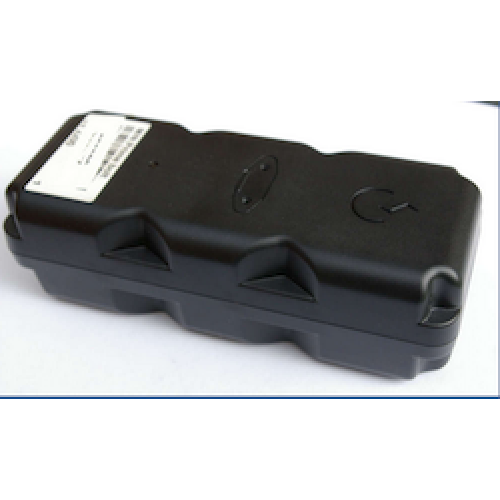

The Snyper Bolt is intended for service in a harsh environment for up to 2 years on Battery Save mode or 3 months typical usage. It has a IP68 hard case with a waterproof external USB charging port to make it capable of brief submersion. It contains a Prime2 circuit board and a 10,400mAh battery giving it up to 2 years in Battery (Stealth) Save mode.
It has a 3G modem, a large cache memory allowing it to remember up to 10,000 positions if disconnected from the phone network which it will upload on reconnection. Its 3 internal Neodymium magnets give it exceptionally strong attachment to ferrous surfaces. Along its length it has two sets of cut-aways to allowing it to be secured to any other type of surface using cable ties.
It has an external USB Mini B female charging port behind a screw-secured cover plate to prevent water ingress.
All 5 user interfaces are available to it.
Dimensions: Length=145mm; Width=58mm; Thickness=42mm
Battery: Lithium polymer (LiPo) 10400mAh 3.7V / 80-90 days autonomous power.
Each device comes with pre-installed free credits for initial usage: 200 position credits; 10 SMS credits
GPS chipset: uBlox all-in-one chipset. 50 channel Class 12
Quad-band operation 850/900/1800/1900MHz
Reception - rapid: TTFF (Time To First Fix): 29s (cold start unobstructed sky), 1s (hot start - already started)
External antenna gain: +5dBm at 1575MHz
Precision: +/- 2.5m after first report when warmed up and with a strong GPS signal.
Motion detection: 3 axis accelerometer: 2g
User interface: USB mini B
Charger: Mains charger and USB lead included. It does not require a charging mat.
There is no On/Off button
There is an LED/status indicator, which can covered with tape if not wanted.
Remote access from Tracking Panel allows users to:
